"Alloy steel pipe is mainly used for high-pressure and high-temperature pipelines and equipment such as power plants, nuclear power, high-pressure boilers, high-temperature superheaters and reheaters. It is made of high-quality carbon steel, alloy structural steel and stainless heat-resistant steel. The material is made by hot rolling (extrusion, expansion) or cold rolling (drawing).
The main purpose of alloy steel pipe is to use in power plants, nuclear power, high-pressure boilers, high-temperature superheaters and reheaters and other high-pressure and high-temperature pipelines and equipment. It is made of high-quality carbon steel, alloy structural steel and stainless heat-resistant steel. , After hot rolling (extrusion, expansion) or cold rolling (drawing). Alloy steel pipe is a kind of seamless steel pipe, its performance is much higher than the general seamless steel pipe, because this steel pipe inside containing Cr, high temperature resistance, low temperature, corrosion-resistant performance of other non-pipe joints not match, so the more extensive use of alloy tube in the petroleum, aerospace, chemical, electric power, boiler, military, and other industries.
A333 pipe is furnished to nine different grades designated by numbers 1, 3, 4, 6, 7, 8, 9, 10, & 11.
Low Temperature Steel Pipe Specifications & Grades
SA333 & A333 – Grades 1, 3, 6 & 8
A671 CC65 CL22 EFW at -50°F (Welded Alternative to A333)
Flanges: A/SA 350 LF2, LF3
Fittings: A/SA-420 WPL6, WPL3

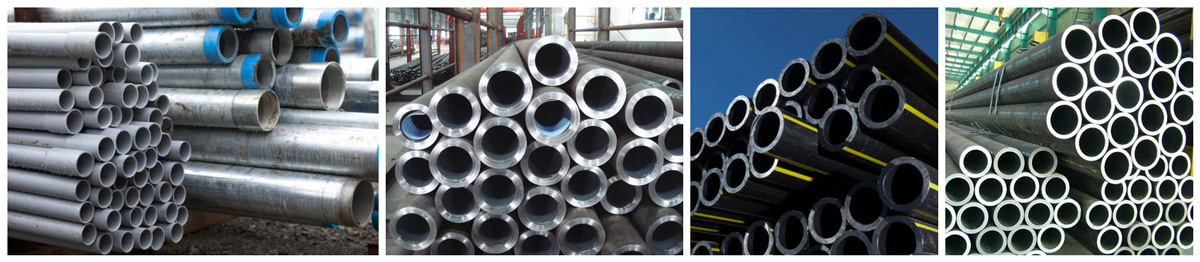

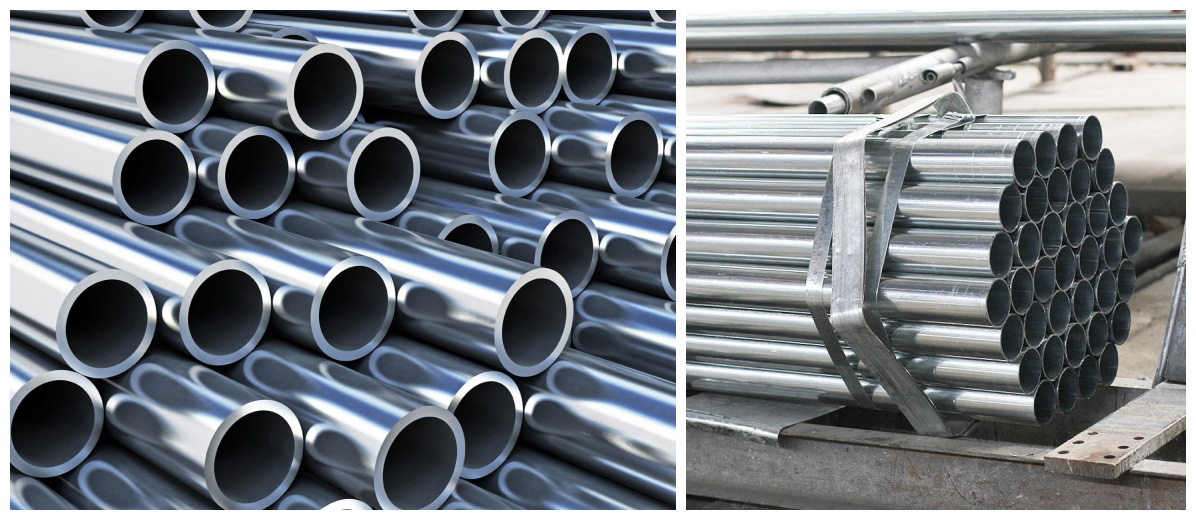

| Product Name | ASTM A333 Alloy Tubes |
| Standard | ASTM A333 |
| Grades | 1, 3, 4, 6, 7, 8, 9, 10, & 11. |

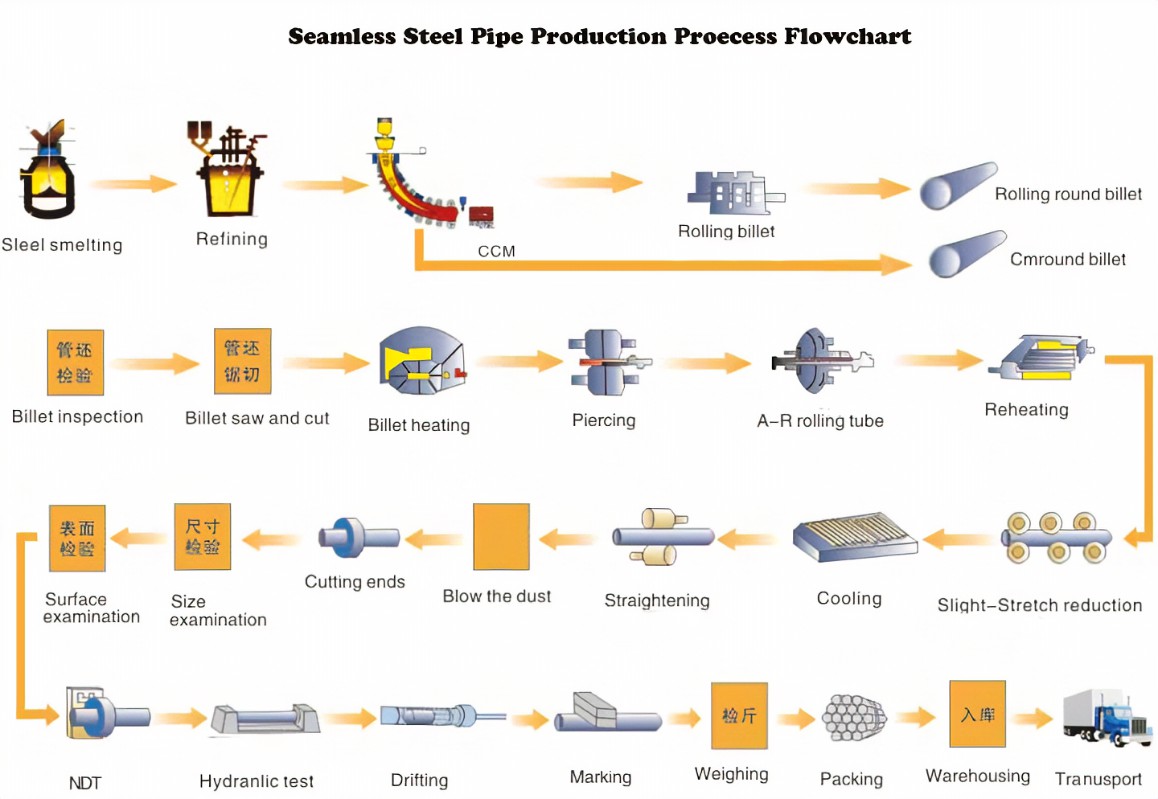

| Production Process | Hot Rolled，Cold Rolled ,Cold Drawn |
| Tolerance | OD :+/-1% ,WT:+/-1% ,Length:+/-5cm |
| Length | 3-12m or as per customers' requirements |
| Surface | According to customer Requirement |
| Payment Terms | EXW, FOB, CIF, CFR etc. |
| Trade Terms | TT, LC,OA,DP etc. |
| Delivery Time | Within 14 days after Receiving 30% TT Advanced or LC at Sight Original |
| Application | Alloy steel pipes are mainly used for high-pressure and high-temperature pipelines and equipment such as power plants, nuclear power, high-pressure boilers, high-temperature superheaters and reheaters. They are made of high-quality carbon steel, alloy structural steel and stainless heat-resistant steel. , by hot rolling (extrusion, expansion) or cold rolling (drawing). |
| Grade | Chemical Composition (%) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Ni | Cu | Mo | V | Al | |
| Grade 1 | ≤0.30 | 0.40-1.06 | ≤0.025 | ≤0.025 | |||||||
| Grade 3 | ≤0.19 | 0.18-0.37 | 0.31-0.64 | ≤0.025 | ≤0.025 | 3.18-3.82 | |||||
| Grade 4 | ≤0.12 | 0.18-0.37 | 0.50-1.05 | ≤0.025 | ≤0.025 | 0.44-1.01 | 0.47-0.98 | 0.40-0.75 | 0.04-0.30 | ||
| Grade 6 | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.025 | ≤0.025 | ||||||
| Grade 7 | ≤0.19 | 0.13-0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 2.03-2.57 | |||||
| Grade 8 | ≤0.13 | 0.13-0.32 | ≤0.90 | ≤0.025 | ≤0.025 | 8.40-9.60 | |||||
| Grade 9 | ≤0.20 | 0.40-1.06 | ≤0.025 | ≤0.025 | 1.60-2.24 | 0.75-1.25 | |||||
| Grade 10 | ≤0.20 | 0.10-0.35 | 1.15-1.50 | ≤0.03 | ≤0.015 | ≤0.15 | ≤0.25 | ≤0.015 | ≤0.50 | ≤0.12 | ≤0.06 |
| Grade 11 | ≤0.10 | ≤0.35 | ≤0.6 | ≤0.025 | ≤0.025 | ≤0.50 | 35.0-37.0 | ≤0.50 | |||
