Chrome moly pipe under ASTM & ASME specification A/SA 335 P1, P2, P11, P12, P15, P22, P91, P92, P122 are used for power industries whereas ASTM/ASME A/SA 335 P5, P9 are used for petrochemical industries
The main purpose of alloy steel pipe is to use in power plants, nuclear power, high-pressure boilers, high-temperature superheaters and reheaters and other high-pressure and high-temperature pipelines and equipment. It is made of high-quality carbon steel, alloy structural steel and stainless heat-resistant steel. , After hot rolling (extrusion, expansion) or cold rolling (drawing). Alloy steel pipe is a kind of seamless steel pipe, its performance is much higher than the general seamless steel pipe, because this steel pipe inside containing Cr, high temperature resistance, low temperature, corrosion-resistant performance of other non-pipe joints not match, so the more extensive use of alloy tube in the petroleum, aerospace, chemical, electric power, boiler, military, and other industries.
ASTM A335 standard is issued under the fixed designation A 335/A 335M; the number immediately following the designation indicates the year of original adoption or, in the case of revision, the year of last revision.
The most common use of grades P11, P22, and P91 is in the power industry and petro-chemical plants, Grades P5 and P9 are commonly used in refineries.
ASTM A335 is often called as chrome moly pipe because of the chemical contain of Molybdenum (Mo) and Chromium (Cr). Molybdenum increases the strength of steel and Chromium (or chrome) is the essential constituent of stainless steel.
The composition chrome moly alloy steel pipe make it ideal for use in power plants, refineries, petro chemical plants, and oil field services where fluids and gases are transported at extremely high temperatures and pressures.
Chrome moly pipe under ASTM & ASME specification A/SA 335 P1, P2, P11, P12, P15, P22, P91, P92, P122 are used for power industries whereas ASTM/ASME A/SA 335 P5, P9 are used for petrochemical industries
Strong resistance to rupturing at high temperatures and high pressures
May be used for Hydrogen Sulfide Corrosion Services
Resistant to cracking from hydrogen attack and embrittlement
Resistant to hot sulfide corrosion cracking
Can be used for NACE Applications where sour environments are under high temp and pressure
Can be used in NACE-MRO 175 Sour Service
Ideal for creep rupture applications
Can handle high temperatures with very low elasticity
Certitifcation: Chrome Moly pipe are certified as PER DIN 50049 3.1, EN 10204 3.1/3.2 and NACE MR-0175 & NACE MR-0103
| Product Name | ASTM A335 Seamless Ferritic Alloy Steel Pipe for High-Temperature Service |
| Standard | ASTM A335 |
| Grades | P1, P2, P5, P9, P11, P12, P15, P22, P91, P92, P122 |
| Production Process | Hot Rolled，Cold Rolled ,Cold Drawn |
| Tolerance | OD :+/-1% ,WT:+/-1% ,Length:+/-5cm |
| Length | 3-12m or as per customers' requirements |
| Surface | According to customer Requirement |
| Payment Terms | EXW, FOB, CIF, CFR etc. |
| Trade Terms | TT, LC,OA,DP etc. |
| Delivery Time | Within 14 days after Receiving 30% TT Advanced or LC at Sight Original |

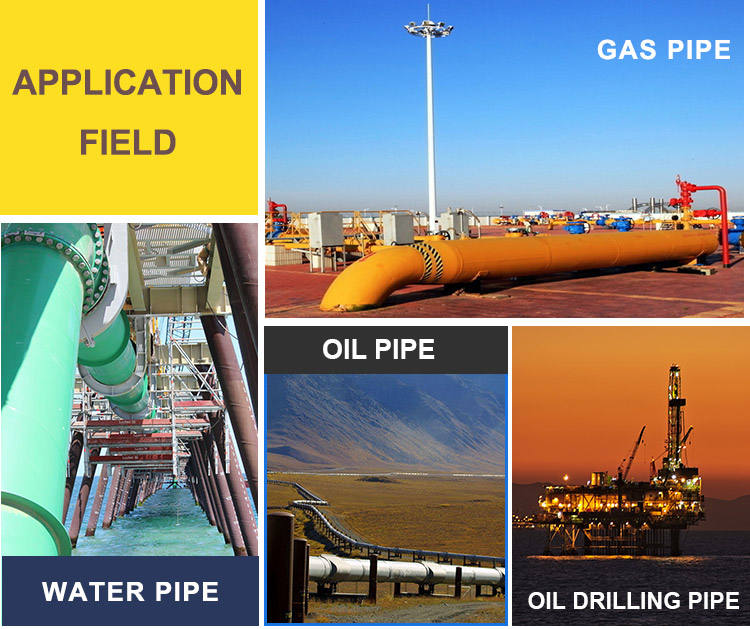

| Application | Alloy steel pipes are mainly used for high-pressure and high-temperature pipelines and equipment such as power plants, nuclear power, high-pressure boilers, high-temperature superheaters and reheaters. They are made of high-quality carbon steel, alloy structural steel and stainless heat-resistant steel. , by hot rolling (extrusion, expansion) or cold rolling (drawing). |
Chemical composition table
These pipe bear high resistance to rupture at high temperature and pressures. With hydrogen crack resistance and sulfide stress corrosion cracking chrome moly pipe are highly preferred over Carbon pipe.
| Grade | UN Sequiv. | C≤ | Mn | P≤ | S≤ | Si≤ | Cr | Mo |
|---|---|---|---|---|---|---|---|---|
| P1 | K11522 | 0.10~0.20 | 0.30~0.80 | 0.025 | 0.025 | 0.10~0.50 | – | 0.44~0.65 |
| P2 | K11547 | 0.10~0.20 | 0.30~0.61 | 0.025 | 0.025 | 0.10~0.30 | 0.50~0.81 | 0.44~0.65 |
| P5 | K41545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.5 | 4.00~6.00 | 0.44~0.65 |
| P5b | K51545 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.00~2.00 | 4.00~6.00 | 0.44~0.65 |
| P5c | K41245 | 0.12 | 0.30~0.60 | 0.025 | 0.025 | 0.5 | 4.00~6.00 | 0.44~0.65 |
| P9 | S50400 | 0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.50~1.00 | 8.00~10.00 | 0.44~0.65 |
| P11 | K11597 | 0.05~0.15 | 0.30~0.61 | 0.025 | 0.025 | 0.50~1.00 | 1.00~1.50 | 0.44~0.65 |
| P12 | K11562 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.5 | 0.80~1.25 | 0.44~0.65 |
| P15 | K11578 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 1.15~1.65 | – | 0.44~0.65 |
| P21 | K31545 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.5 | 2.65~3.35 | 0.80~1.60 |
| P22 | K21590 | 0.05~0.15 | 0.30~0.60 | 0.025 | 0.025 | 0.5 | 1.90~2.60 | 0.87~1.13 |
| P91 | K91560 | 0.08~0.12 | 0.30~0.60 | 0.02 | 0.01 | 0.20~0.50 | 8.00~9.50 | 0.85~1.05 |
| P92 | K92460 | 0.07~0.13 | 0.30~0.60 | 0.02 | 0.01 | 0.5 | 8.50~9.50 | 0.30~0.60 |

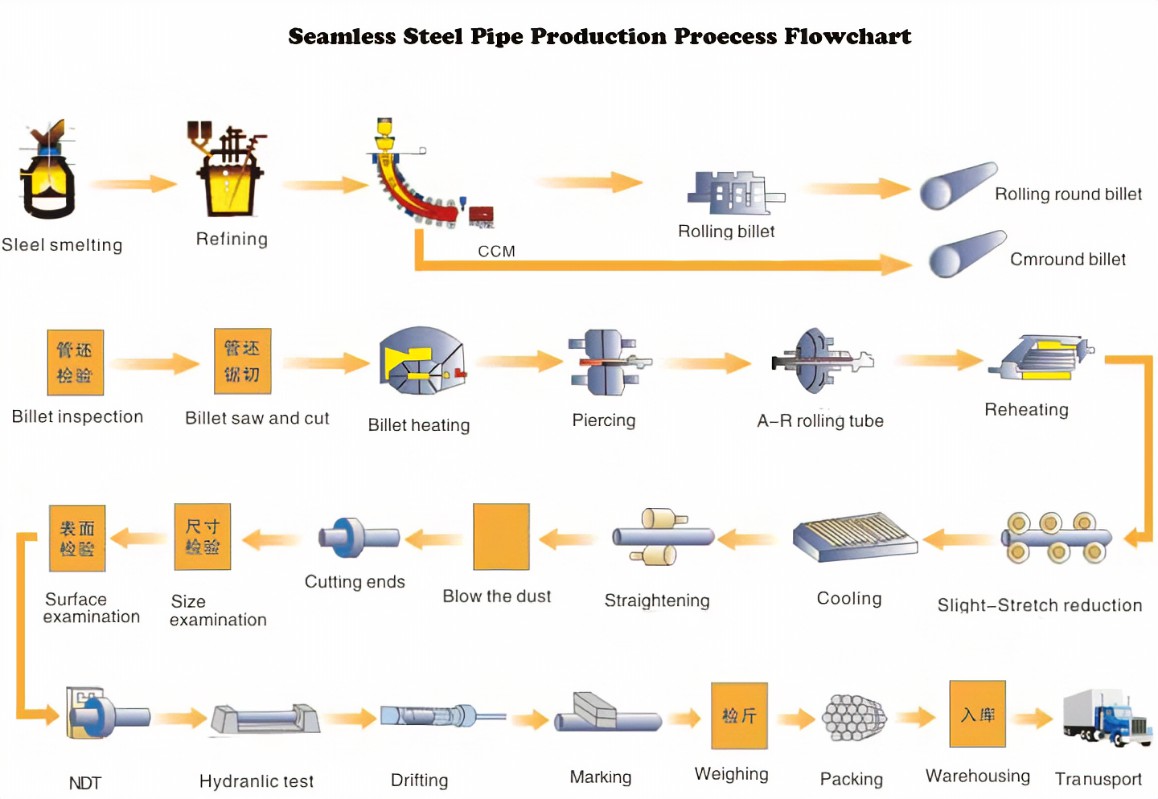

production process

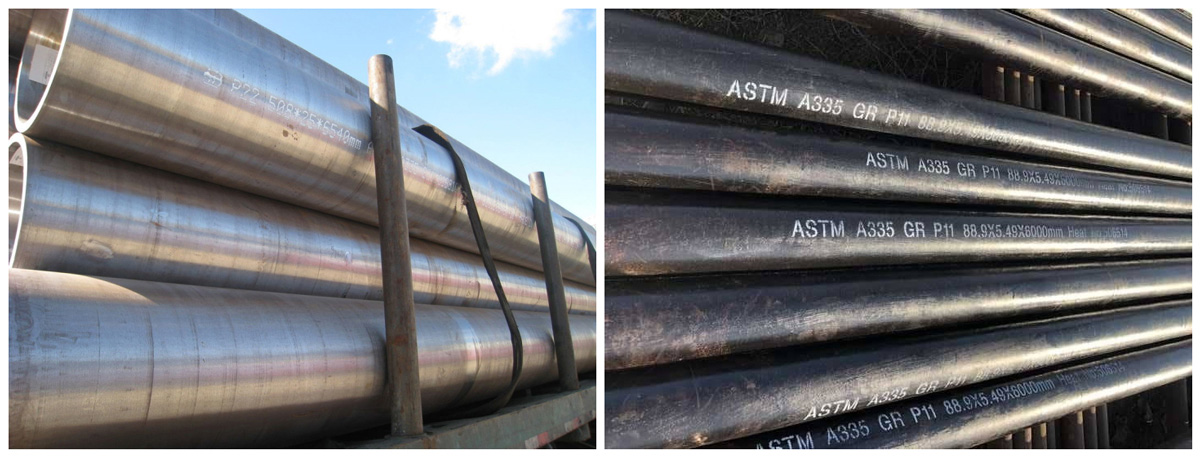

Standard airworthiness export packaging, or according to the needs of customers.

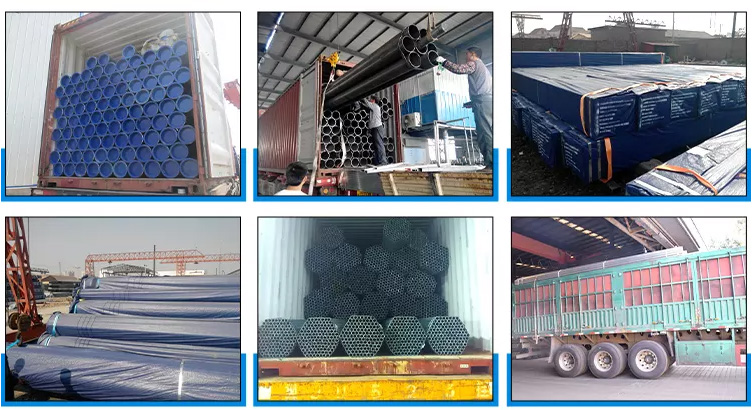

We offer different modes of transport depending on the customer's destination: rail transport and ship transport.The Shipping Mark shall consist of: Trade mark, Seller's name, Product name, Applicable standards, Specifications, Package No., Contract No., Heat No., Weight of zinc film, Color, Production date, Weighing method, Net weight, Gross Weight, Consignee and Protection symbols, etc.
Q: Who and where are you?
Shandong Huitong Steel Co., Ltd. is a large steel production enterprise. Our main production base is located at Liaocheng city, shandong province, China.
Q:What kind of metal material does your company do?
Our production scope involves seamless steel pipes, galvanized steel products, stainless steel products, steel plate, customized heterosexual steel pipes and other steels.
Q:What are the advantages in price and quality ?
To offer good quality and competitive price is our company principle.
We can offer our customer good and reasonable price.
Q: OEM Service is acceptable?
Yes, OEM severvice is available.
Q: Payment term and Lead time
A: Payment term is depending on target market condition,order amount,shipment schedule.., or 30% T/T in advance ,balance will be paid against BL copy or LC at sight.
B: Delivery time: for most of pipe,plate, coil.. the lead time is at around7- 15days. For larger order plate, it is subject to the steel plant production order, but. Base on our larger purchasing oder from steel mill, we can assure our customer the delivery date is soon.
